Party Role framework explained

Party Role framework is used to model:

• Parties, like Persons and Companies
• their Roles, like SupplierRole
• relationships among them, including roles in that relationship. Example: company A is a supplier to company B and customer to company C.

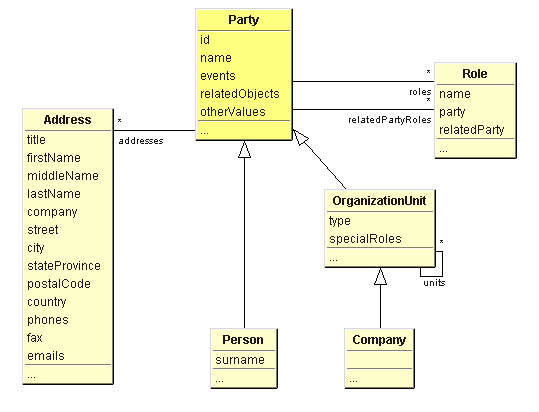

Here is the class diagram of main part of Party framework:

Class diagram of Party framework



Party Role framework is part of core Aida/Web and it can be found in packages Aida-Parties and Aida-Roles.

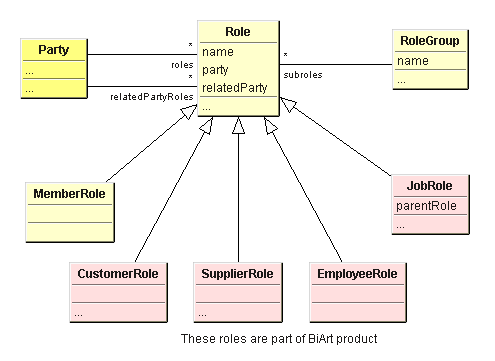

There is a hierarchy of roles, as seen on next diagram. Note that non-yellow classes are not part of Aida-Roles but from BiArt product.

Class diagram of Role framework
